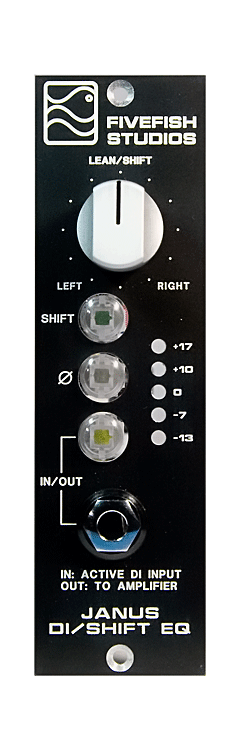

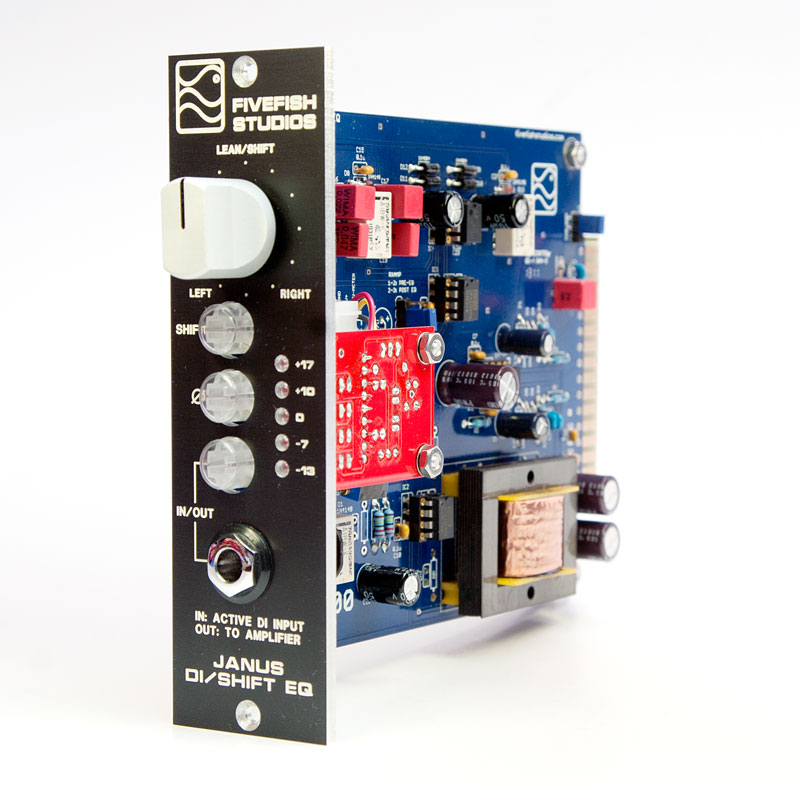

Janus Active DI/Shift EQ

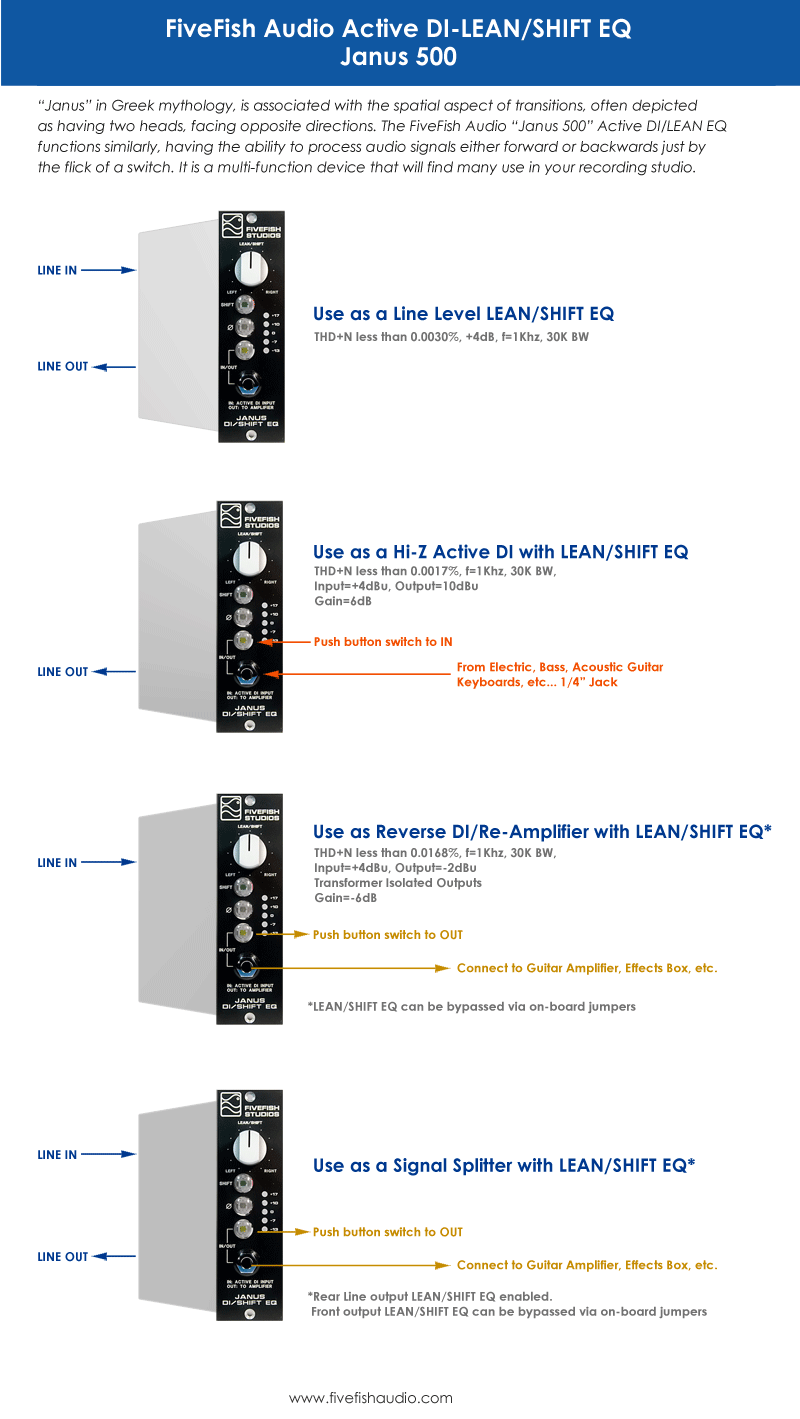

The Janus DI/EQ is a multifunction unit (think of it as an "Audio Swiss Knife"), capable of working either as a Lean/Shift EQ, Electric/bass/keyboard Active DI Input, Guitar Re-Amplifier, or as a Signal-Splitter.

Not happy with your tracks? Use the Lean/Shift EQ as a single-knob EQ to simultaneously boost and cut either the low-end or high-end frequency parts. No setting sounds bad, because this is designed to be musical and easy to use.

Need to quickly record a new guitar part? Insert your guitar cable, flip a switch and start shredding!

Want to send your recorded guitar track to a guitar amp cabinet and re-record it? Connect the cable to your guitar amp, and flip the switch again and you're ready to roll!

Ever wonder what it will be like running the same signal through different external effects boxes for later mixing? Use the signal splitter capability of the Janus DI/EQ.

Just think of the creative possibilities! I'm sure you'll find a use for this "audio swiss knife" on your next recording and mixing sessions!

The Janus DI/EQ is designed for the popular API VPR500 Rack format. We hope to ship an evaluation unit soon to API Audio to get this VPR Certified so it can join the rest of our certified Fivefish 500 series product lineup.

Features

Easy to use Lean/Shift EQ, +/-6dB for a musical sounding EQ with no bad setting
LED-lighted push button for alternate "fulcrum/center" frequencies for the EQ function
LED-lighted push buttons for Active DI/Re-amplifier, and polarity reverse switching
Electronically balanced and Transformer-isolated outputs... yes, there are (2) two outputs!

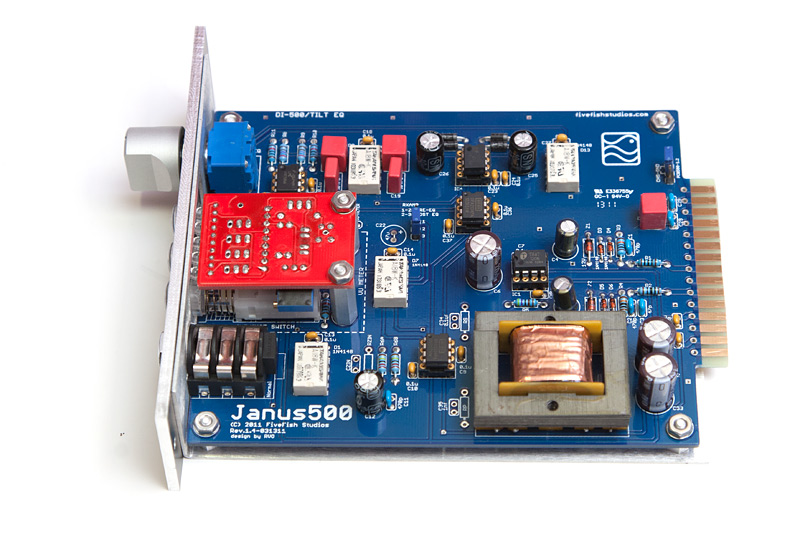

Low-noise, low distortion design using high-performance chips, and quality components
5-LED VU Meter
Using WIMA high quality capacitors for EQ section
Input and output protection circuitry
Using High-quality signal Relays for logic and audio signal switching
Solid-machined aluminum knob
Anodized, and CNC engraved front panel (not cheap silkscreen that will fade or wear out)
Quality Neutrik 1/4" guitar jacks, with dress chrome nut
User accessible on-board jumper setting for PRE/POST EQ for the transformer-isolated output. If jumper is set to POST EQ, the Lean/Shift EQ also affects the signal going to the guitar amplifier cabinet.

FiveFish Audio and the Janus DI/EQ is part of the API VPR Alliance.

The VPR Alliance is a program of standardization and consistency guidelines set by API Audio for manufacturers, to make our products physically fit and electronically conform to API's 500 series rack specifications. As stated on API's website, "Customers benefit from the VPR Alliance through the elimination of any confusion as to which products are endorsed for placement in API racks. Customers also benefit from a wider range of module choices for their racks, safety in the knowledge that the specification of the third party unit is correct, and that there is no risk of damage occurring. "
